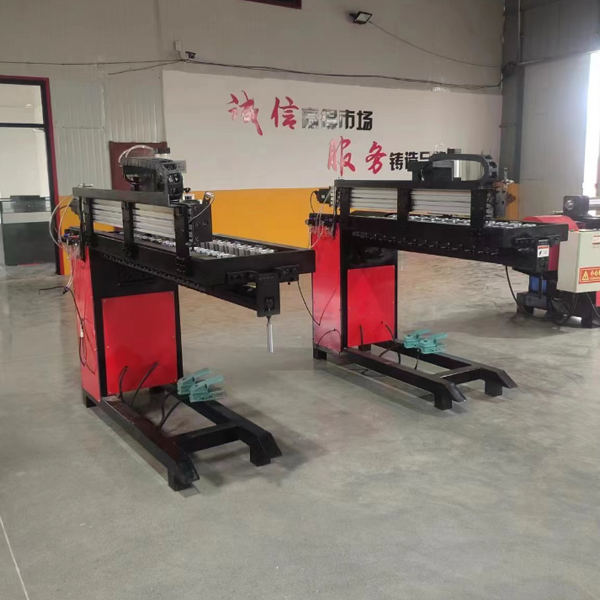

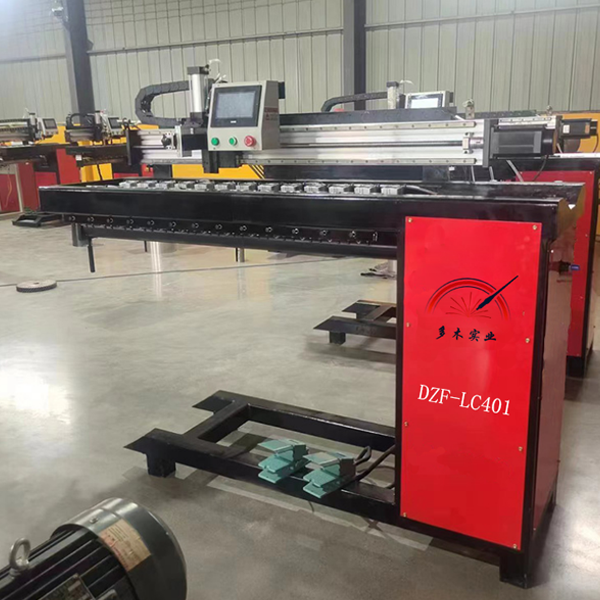

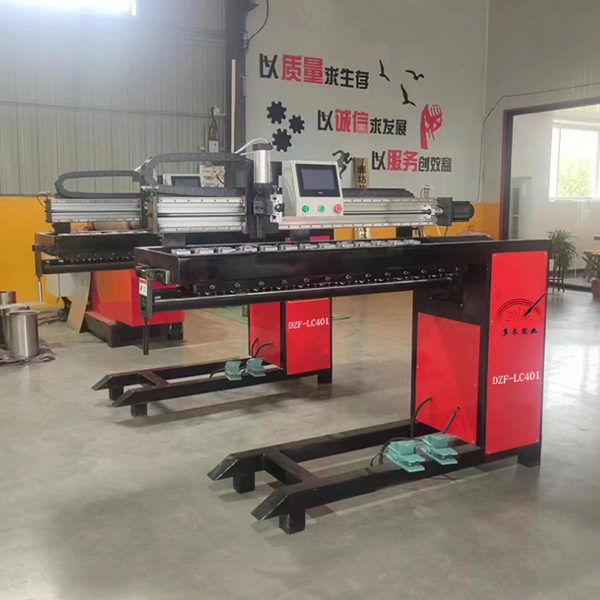

The machine is composed of frame, cantilever beam, supporting shaft, piano key plate, centering mechanism, padlock, welding gun walking mechanism, welding gun clamping and adjusting mechanism, and electrical control system.
The piano keys cooperate with the high-strength air bag to provide balanced piano key pressure on the whole length of the weld;
The keys are inlaid with alloy copper with high hardness and high thermal conductivity to provide good heat dissipation effect;
The relative distance of the key can be adjusted according to the welding material and its thickness;
There is a backing on the back of the weld on the mandrel to speed up the cooling of the weld;
The forming groove of the liner on the mandrel is designed according to the material to be welded and its thickness to achieve the best back forming effect;
Using Mitsubishi PLC control, can realize a variety of action process;
Using servo (stepping) motor, the welding speed is accurate and stable, and the adjustment range is wide;
Automatic lifting of welding gun;
Fine adjustment of welding torch up and down, left and right cross to accurately adjust the distance between welding torch and workpiece;
The welding gun can rotate around the fixed rod to facilitate the replacement and adjustment of accessories;

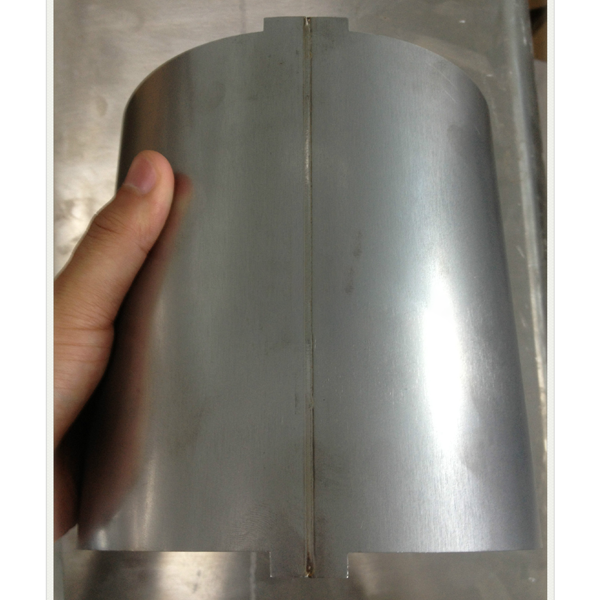

It is suitable for the longitudinal seam butt joint of all kinds of medium and thin metal materials, and the longitudinal seam butt joint of cylinder. It can be used in the thin-wall metal processing and manufacturing industries such as hardware, household appliances, fire-fighting equipment, water heater, fan, container, etc.
A: It is ideal for longitudinal seam butt joints of medium and thin metal materials, cylinder butt joints, and is widely applied in industries such as hardware, household appliances, fire-fighting equipment, water heaters, fans, and containers.
A: The machine utilizes high-strength air bags combined with piano key plates to distribute balanced, consistent pressure across the entire length of the weld seam.
A: The keys are inlaid with high-hardness, high-thermal-conductivity alloy copper for excellent heat dissipation. Additionally, a backing on the mandrel accelerates weld cooling, while the forming groove ensures optimal back forming.
A: The system uses a Mitsubishi PLC control for versatile action programming, along with a servo (stepping) motor to achieve precise, stable, and highly adjustable welding speeds.
A: Yes, it features automatic lifting, fine-tuning along the up/down and left/right cross axes, and can rotate around the fixed rod to allow for quick adjustment and accessory replacement.
